Sumitomo

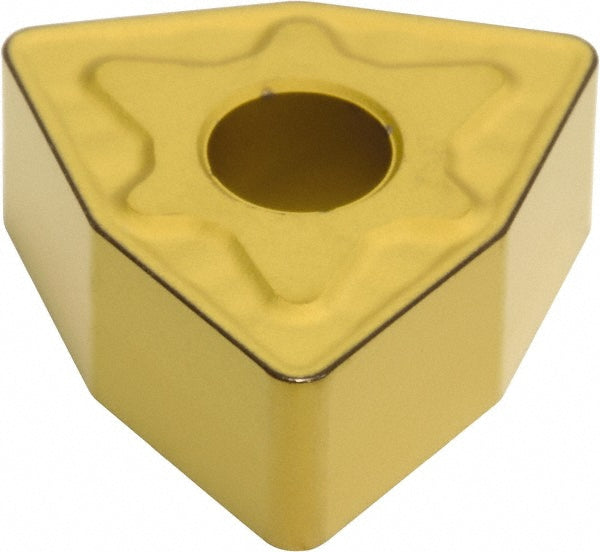

WNMG080412N-ME Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJCEN
MFR# 19RJCENISO/ANSI# WNMG080412N-MESeries TN
$14.14List $17.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RJCEN is a WNMG080412N-ME carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Chip breakerEME
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412N-ME
Manufacturer gradeAC820P
RakePositive
Rake angle3
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
