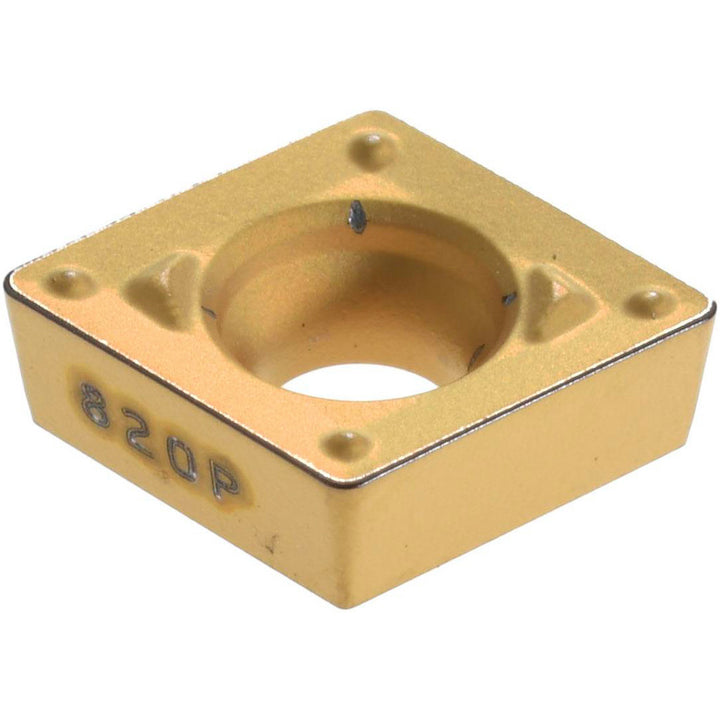

CCMT060204N-SK Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJW0H

Sumitomo

CCMT060204N-SK Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJW0H

MFR# 19RJW0HISO/ANSI# CCMT060204Series CC

$9.06List $11.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC820P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RJW0H is a CCMT060204N-SK carbide indexable insert, grade AC820P, Coated coated.

Specifications

Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerENK
Chip breaker operationFinishing
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204N-SK
Iso insert codeCCMT060204
Iso size code060204
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakePositive
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
