Sumitomo

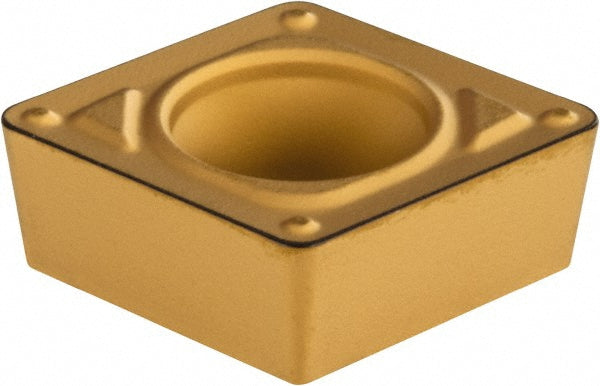

CCMT09T308N-SK Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJW23
MFR# 19RJW23ISO/ANSI# CCMT09T308N-SKSeries CC
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RJW23 is a CCMT09T308N-SK solid carbide indexable insert, grade AC820P, Coated coated. Suited for m, p.
Specifications
Ansi codeCCMT32.52ENK
Chip breakerENK
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308N-SK
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakePositive
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
