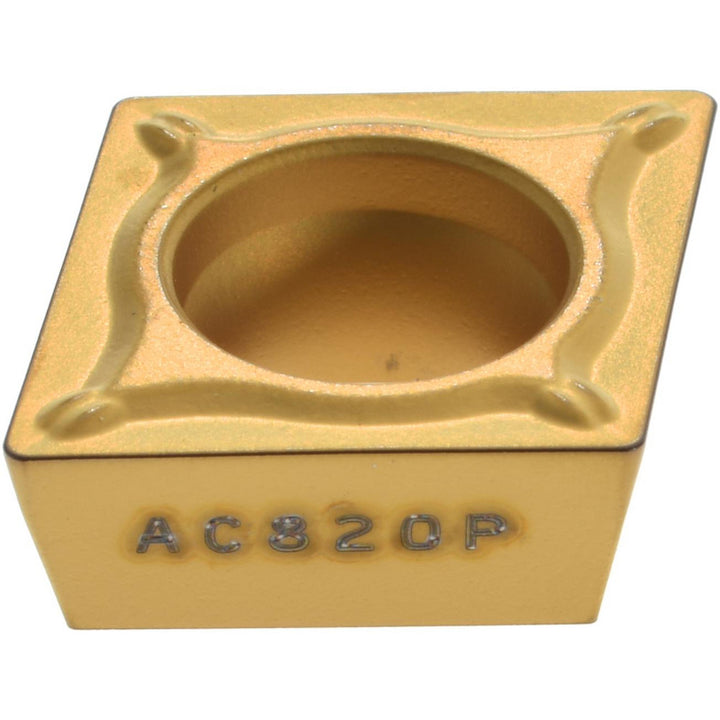

CPMT09T304N-SU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJW3P

Sumitomo

CPMT09T304N-SU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJW3P

MFR# 19RJW3PISO/ANSI# CPMT09T304Series CPMT

$11.20List $14.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC820P
MaterialCarbide
CoatingAl2O3

Description

The Sumitomo 19RJW3P is a CPMT09T304N-SU carbide indexable insert, grade AC820P, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeCPMT32.51
Ansi size code32.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.5
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T304N-SU
Iso insert codeCPMT09T304
Iso size code09T304
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
