Sumitomo

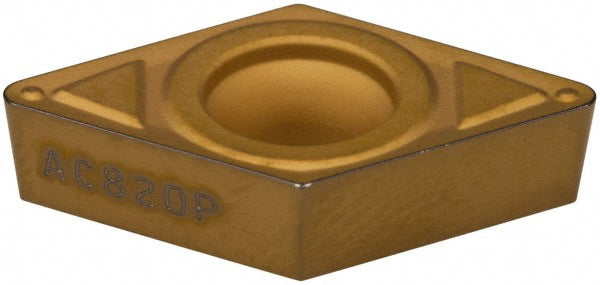

DCMT11T308N-SK Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJW62
MFR# 19RJW62ISO/ANSI# DCMT11T308N-SKSeries DC
$16.41List $21.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RJW62 is a DCMT11T308N-SK solid carbide indexable insert, grade AC820P, Coated coated. Suited for m, p.
Specifications
Ansi codeDCMT32.52ENK
Chip breakerENK
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.1730
Included angle55.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T308N-SK
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakePositive
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
