Sumitomo

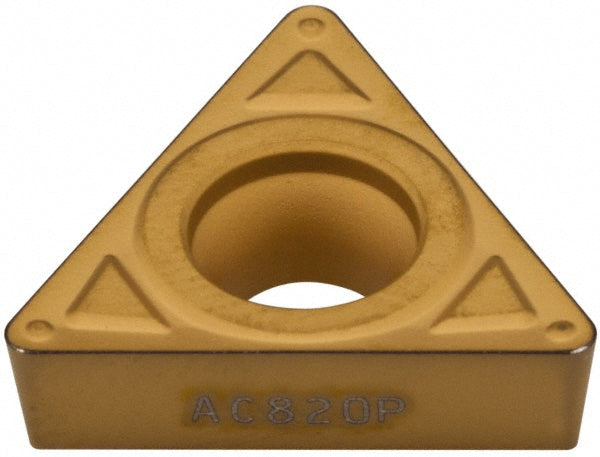

TCMT110204N-SK Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJW8L
MFR# 19RJW8LISO/ANSI# TCMT110204N-SKSeries TC
$10.83List $13.88
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RJW8L is a TCMT110204N-SK solid carbide indexable insert, grade AC820P, Coated coated. Suited for m, p.
Specifications
Ansi codeTCMT21.51ENK
Chip breakerENK
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.1100
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110204N-SK
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakePositive
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
