Sumitomo

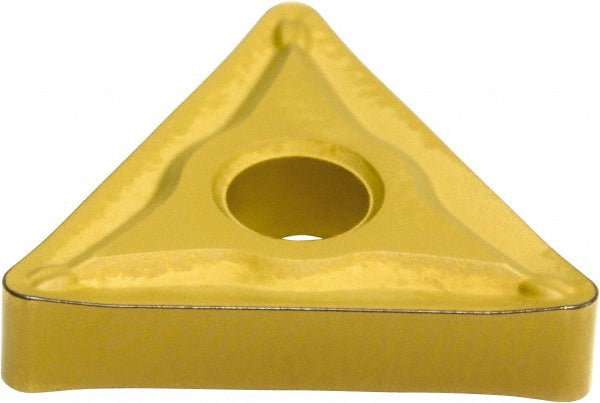

TNMG160308N-SU Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJWB4
MFR# 19RJWB4ISO/ANSI# TNMG160308N-SUSeries TN
$7.44List $9.53
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJWB4 is a TNMG160308N-SU solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeTNMG322ESU
Chip breakerESU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code322
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG160308N-SU
Manufacturer gradeAC820P
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
