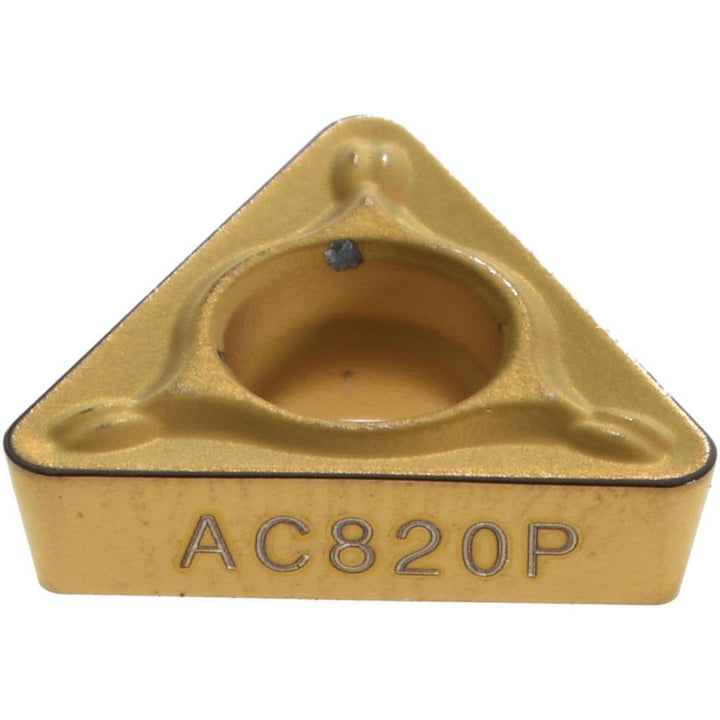

TPMT110208N-SU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJWC2

Sumitomo

TPMT110208N-SU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJWC2

MFR# 19RJWC2ISO/ANSI# TPMT110208Series TPMT

$10.12List $12.99 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeAC820P
MaterialCarbide
CoatingAl2O3

Description

The Sumitomo 19RJWC2 is a TPMT110208N-SU carbide indexable insert, grade AC820P, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeTPMT21.52
Ansi size code21.52
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1070
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.5
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT110208N-SU
Iso insert codeTPMT110208
Iso size code110208
Manufacturer gradeAC820P
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
