Sumitomo

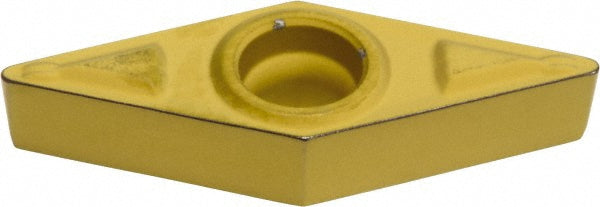

VBMT110308N-SU Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJWDR
MFR# 19RJWDRISO/ANSI# VBMT110308N-SUSeries VB
$14.27List $18.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJWDR is a VBMT110308N-SU solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeVBMT222ESU
Chip breakerESU
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1340
Included angle35.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4370
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code222
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT110308N-SU
Manufacturer gradeAC820P
RakePositive
Rake angle8
Relief angle5
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
