Sumitomo
DNMA150404 Solid Carbide Insert, Grade AC4010K, Al2O3 - Sumitomo 19T1231
MFR# 19T1231ISO/ANSI# DNMA150404Cat# DNMA431-AC4010KSeries AC4000K
$17.41List $22.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC4010K
MaterialSolid Carbide
CoatingAl2O3
Description

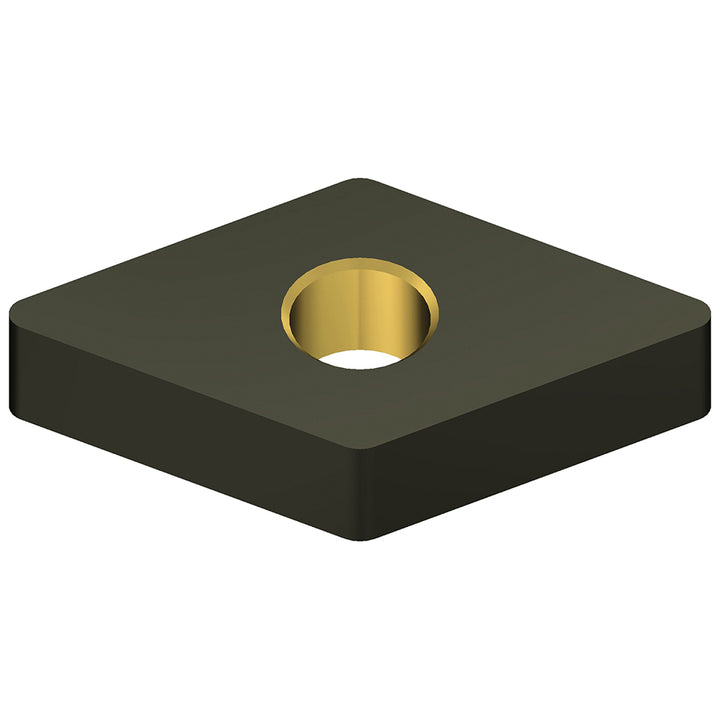

The Sumitomo 19T1231 is a DNMA150404 solid carbide indexable insert, grade AC4010K, Al2O3 coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0157
Hole diameter0.2032
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert size code431
Insert styleDNMA
Insert thickness0.1874
Iso codeDNMA150404
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMA431-AC4010K
Manufacturer gradeAC4010K
Relief angle0
Tolerance codeM
