Sumitomo

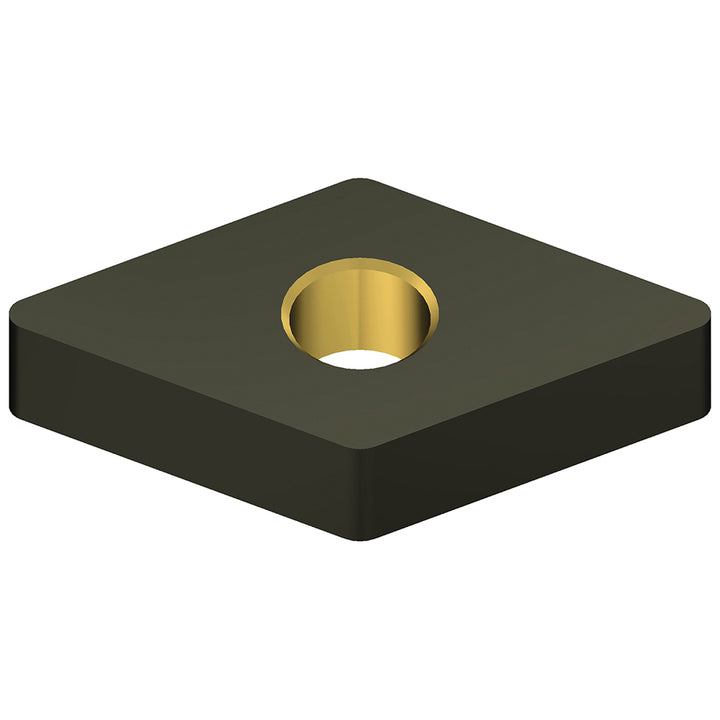

DNMA150408 Carbide Insert, Grade AC4010K, Al2O3 - Sumitomo 19T1233
MFR# 19T1233ISO/ANSI# DNMA150408Cat# DNMA432-AC4010KSeries DNMA
$20.02List $25.23
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC4010K
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19T1233 is a DNMA150408 carbide indexable insert, grade AC4010K, Al2O3 coated. Suited for cast iron.
Specifications
Ansi insert codeDNMA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMA
Insert thickness in3/16
Iso codeDNMA150408
Iso insert codeDNMA150408
Iso size code150408
Manufacturers catalog numberDNMA432-AC4010K
Manufacturer gradeAC4010K
Material gradeK10
Multi use toolYes
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
