Sumitomo

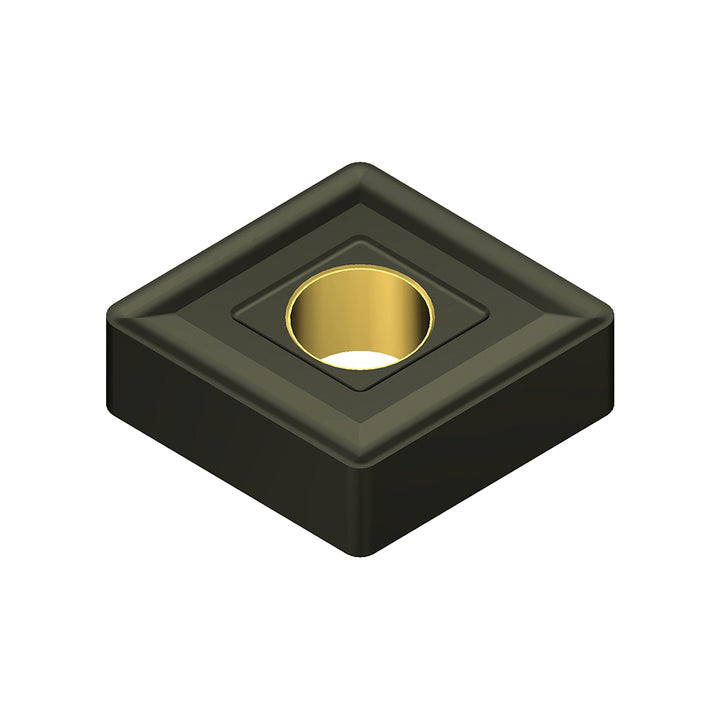

CNMG120408N-GZ Carbide Insert, Grade AC4010K, Al2O3 - Sumitomo 19T1CAB
MFR# 19T1CABISO/ANSI# CNMG120408N-GZCat# CNMG432EGZ-AC4010KSeries CN
$12.93List $16.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC4010K
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19T1CAB is a CNMG120408N-GZ carbide indexable insert, grade AC4010K, Al2O3 coated. Suited for cast iron.
Specifications
Ansi size code432
Chip breakerEGZ
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-GZ
Iso size code120408
Manufacturers catalog numberCNMG432EGZ-AC4010K
Manufacturer gradeAC4010K
Material gradeK10
Multi use toolYes
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
