Sumitomo

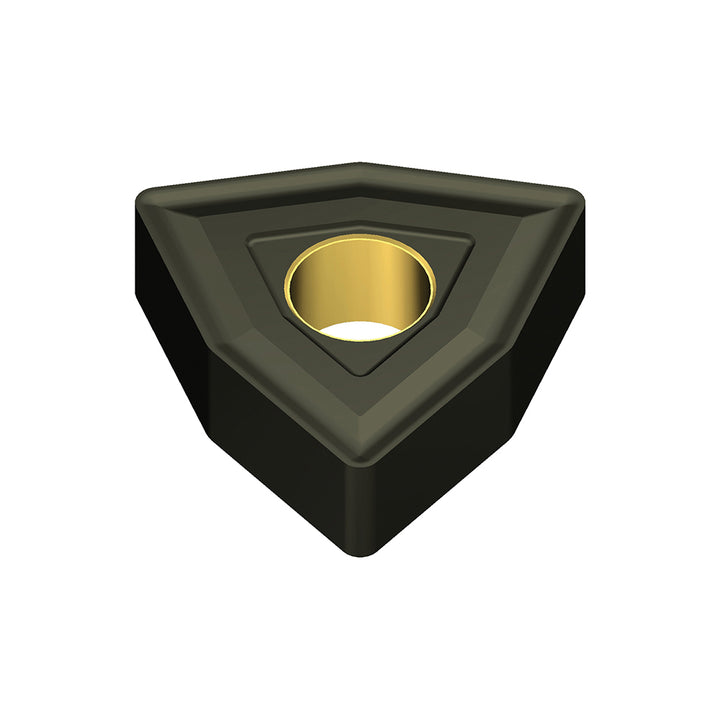

WNMG080412N-GZ Carbide Insert, Grade AC4010K, Al2O3 - Sumitomo 19T1CAX
MFR# 19T1CAXISO/ANSI# WNMG080412N-GZCat# WNMG433EGZ-AC4010KSeries TN
$12.93List $16.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC4010K
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19T1CAX is a WNMG080412N-GZ carbide indexable insert, grade AC4010K, Al2O3 coated. Suited for cast iron.
Specifications
Chip breakerEGZ
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Full radiusNo
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412N-GZ
Manufacturers catalog numberWNMG433EGZ-AC4010K
Manufacturer gradeAC4010K
Material gradeK10
Multi use toolYes
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
