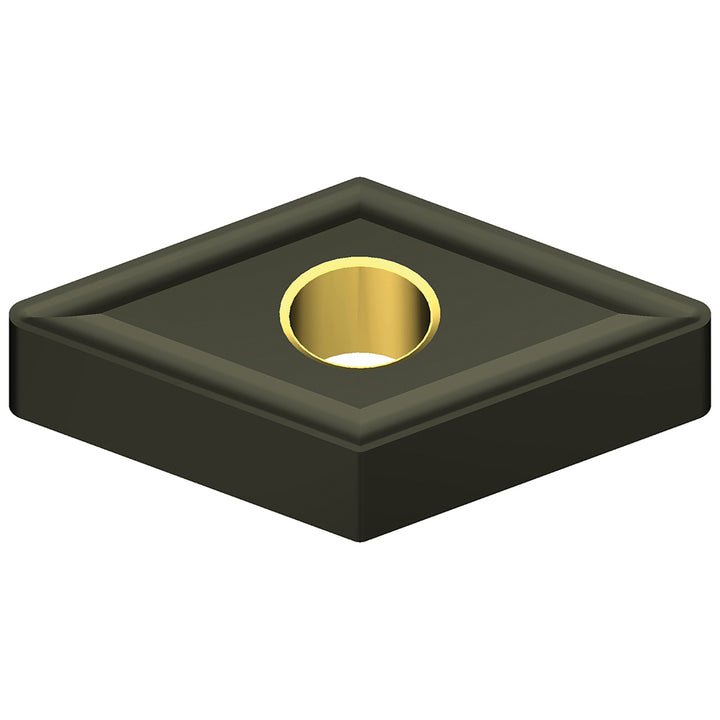

DNMG150408N-UZ Solid Carbide Insert, Grade AC4015K, Al2O3 - Sumitomo 19T2200
MFR# 19T2200ISO/ANSI# DNMG150408N-UZCat# DNMG432ENZAC4015KSeries DN
$21.56List $27.17
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC4015K
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19T2200 is a DNMG150408N-UZ solid carbide indexable insert, grade AC4015K, Al2O3 coated. Suited for cast iron.
Specifications
Ansi codeDNMG432ENZ
Chip breakerENZ
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Cutting directionNeutral
Full radiusNo
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-UZ
Manufacturers catalog numberDNMG432ENZAC4015K
Manufacturer gradeAC4015K
Material gradeK15
Multi use toolYes
Primary workpiece materialCast Iron
RakeNegative
Rake angle4
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
