Sumitomo

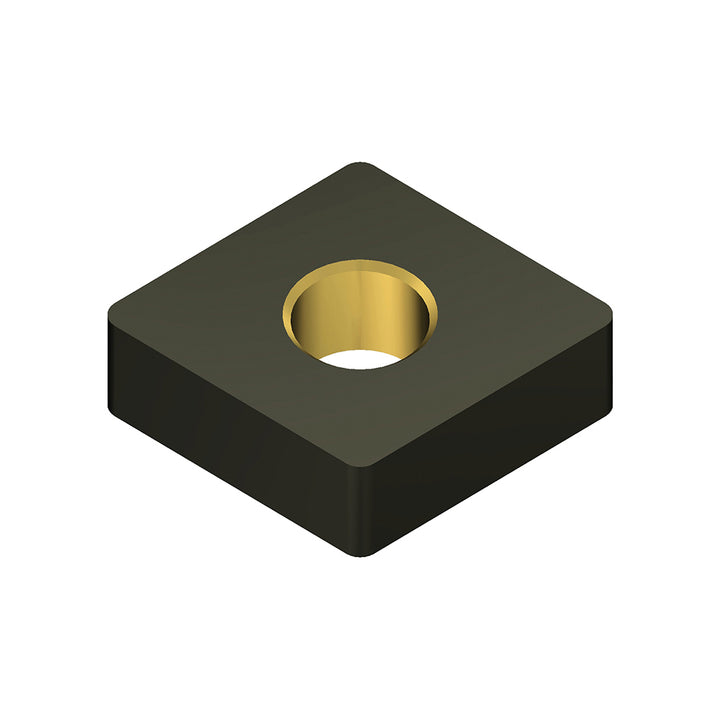

CNMA160616 Carbide Insert, Grade AC4015K, Al2O3 - Sumitomo 19T2226
MFR# 19T2226ISO/ANSI# CNMA160616Cat# CNMA544-AC4015KSeries CN
$19.58List $25.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC4015K
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19T2226 is a CNMA160616 carbide indexable insert, grade AC4015K, Al2O3 coated. Suited for cast iron.
Specifications
Ansi insert codeCNMA544
Ansi size code544
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6339
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code544
Insert styleCNMA
Insert thickness in1/4
Iso codeCNMA160616
Iso insert codeCNMA160616
Iso size code160616
Manufacturers catalog numberCNMA544-AC4015K
Manufacturer gradeAC4015K
Material gradeK15
Multi use toolYes
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
