Sumitomo

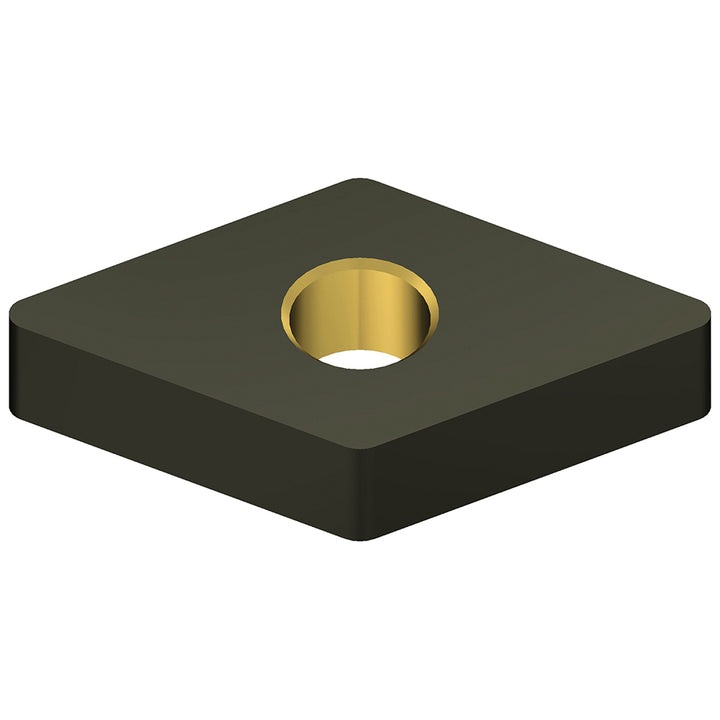

DNMA150408 Carbide Insert, Grade AC4015K, Al2O3 - Sumitomo 19T2233
MFR# 19T2233ISO/ANSI# DNMA150408Cat# DNMA432-AC4015KSeries DNMA
$17.41List $22.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC4015K
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19T2233 is a DNMA150408 carbide indexable insert, grade AC4015K, Al2O3 coated. Suited for cast iron.
Specifications
Chip breakerA
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Full radiusNo
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMA
Insert thickness in3/16
Iso codeDNMA150408
Manufacturers catalog numberDNMA432-AC4015K
Manufacturer gradeAC4015K
Material gradeK15
Multi use toolYes
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
