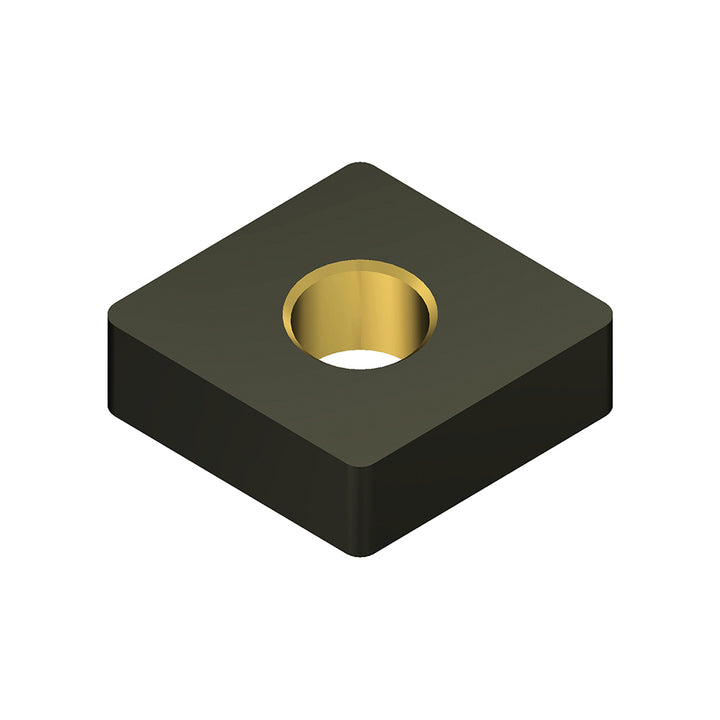

CNMA120412 Solid Carbide Insert, Grade AC4015K, Al2O3 - Sumitomo 19T2273
MFR# 19T2273ISO/ANSI# CNMA120412Cat# CNMA433-AC4015KSeries CN
$11.73List $15.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC4015K
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19T2273 is a CNMA120412 solid carbide indexable insert, grade AC4015K, Al2O3 coated. Suited for cast iron.
Specifications
Ansi codeCNMA433
Chip breakerA
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120412
Manufacturers catalog numberCNMA433-AC4015K
Manufacturer gradeAC4015K
Material gradeK15
Multi use toolYes
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
