Sumitomo

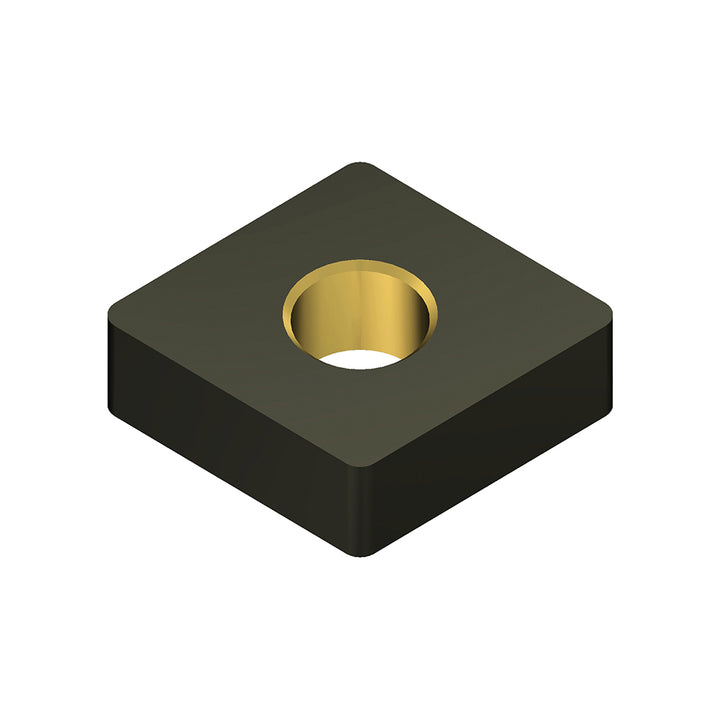

CNMA190612 Solid Carbide Insert, Grade AC4015K, Al2O3 - Sumitomo 19T2283
MFR# 19T2283ISO/ANSI# CNMA190612Cat# CNMA643-AC4015KSeries CN
$25.59List $32.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAC4015K
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19T2283 is a CNMA190612 solid carbide indexable insert, grade AC4015K, Al2O3 coated. Suited for cast iron.
Specifications
Ansi codeCNMA643
Chip breakerA
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.7598
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code643
Insert styleCNMA
Insert thickness in1/4
Iso codeCNMA190612
Manufacturers catalog numberCNMA643-AC4015K
Manufacturer gradeAC4015K
Material gradeK15
Multi use toolYes
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
