Sumitomo

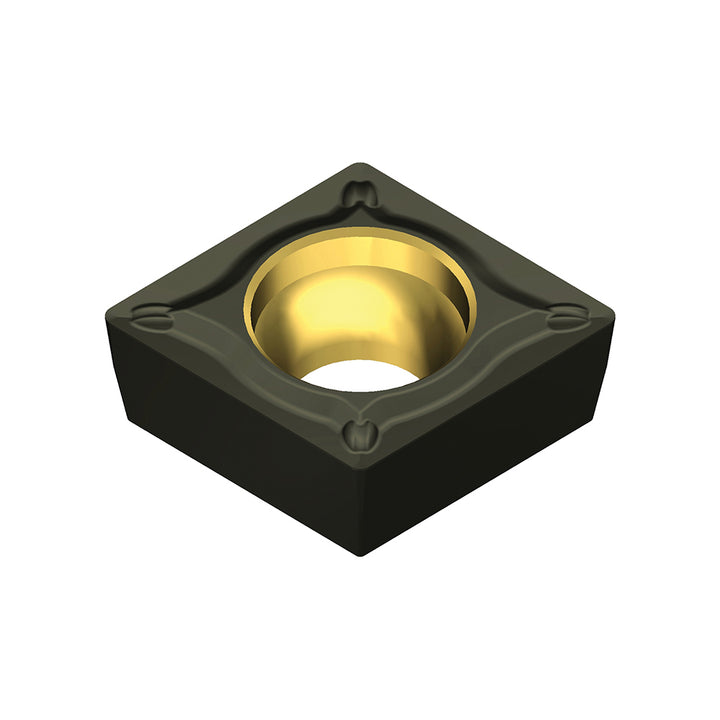

CCMT060204N-SU Solid Carbide Insert, Grade AC4015K, Al2O3 - Sumitomo 19T2BPC
MFR# 19T2BPCISO/ANSI# CCMT060204N-SUCat# CCMT21.51ESUAC4015KSeries CC
$8.89List $11.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC4015K
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19T2BPC is a CCMT060204N-SU solid carbide indexable insert, grade AC4015K, Al2O3 coated. Suited for cast iron.
Specifications
Ansi codeCCMT21.51ESU
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204N-SU
Manufacturers catalog numberCCMT21.51ESUAC4015K
Manufacturer gradeAC4015K
Material gradeK15
Multi use toolYes
Primary workpiece materialCast Iron
RakePositive
Rake angle8
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
