Sumitomo

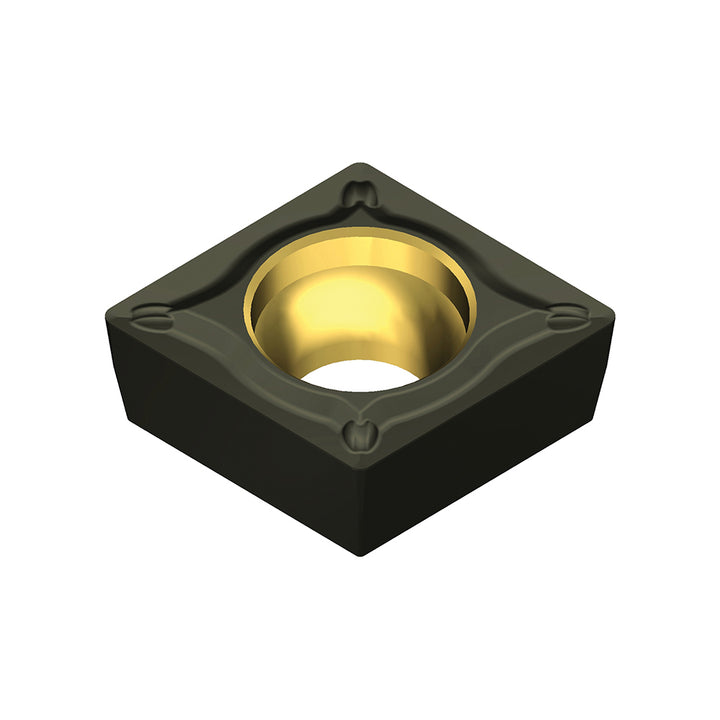

CCMT09T308N-SU Carbide Insert, Grade AC4015K, Al2O3 - Sumitomo 19T2BPF
MFR# 19T2BPFISO/ANSI# CCMT09T308Cat# CCMT32.52ESUAC4015KSeries CC
$11.74List $15.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC4015K
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19T2BPF is a CCMT09T308N-SU carbide indexable insert, grade AC4015K, Al2O3 coated. Suited for cast iron.
Specifications
Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308N-SU
Iso insert codeCCMT09T308
Iso size code09T308
Manufacturers catalog numberCCMT32.52ESUAC4015K
Manufacturer gradeAC4015K
Material gradeK15
Multi use toolYes
Primary workpiece materialCast Iron
RakePositive
Rake angle8
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
