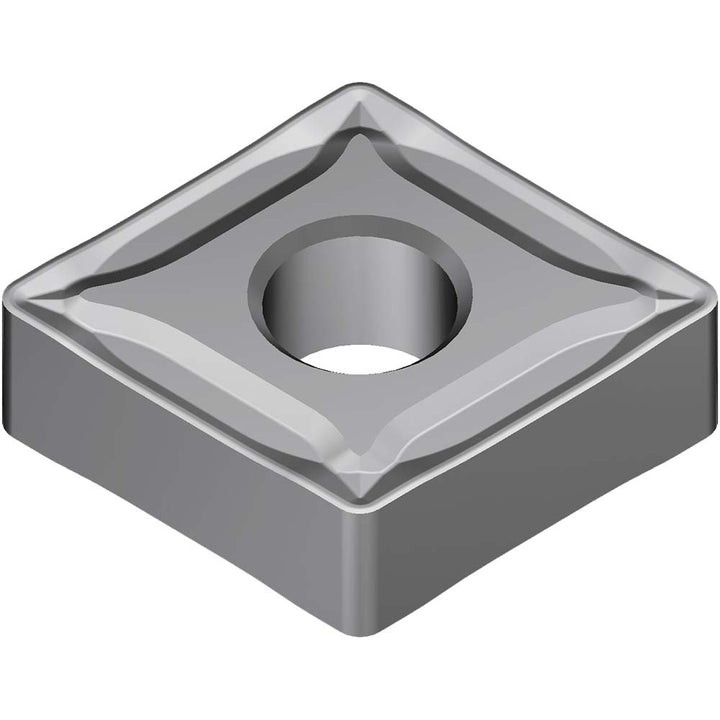

CNMG190616N-MX Carbide Insert, Grade AC8035P, Absotech Platinum - Sumitomo 19T3ANK

Sumitomo

CNMG190616N-MX Carbide Insert, Grade AC8035P, Absotech Platinum - Sumitomo 19T3ANK

MFR# 19T3ANKISO/ANSI# CNMG190616Cat# CNMG644EMX-AC8035PSeries CN

$25.48List $32.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC8035P
MaterialCarbide
CoatingAbsotech Platinum

Description

The Sumitomo 19T3ANK is a CNMG190616N-MX carbide indexable insert, grade AC8035P, Absotech Platinum coated. Suited for steel.

Specifications

Ansi insert codeCNMG644
Ansi size code644
Chip breakerEMX
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/16
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.7598
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code644
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190616N-MX
Iso insert codeCNMG190616
Iso size code190616
Manufacturers catalog numberCNMG644EMX-AC8035P
Manufacturer gradeAC8035P
Material gradeP30; P40
Multi use toolYes
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
