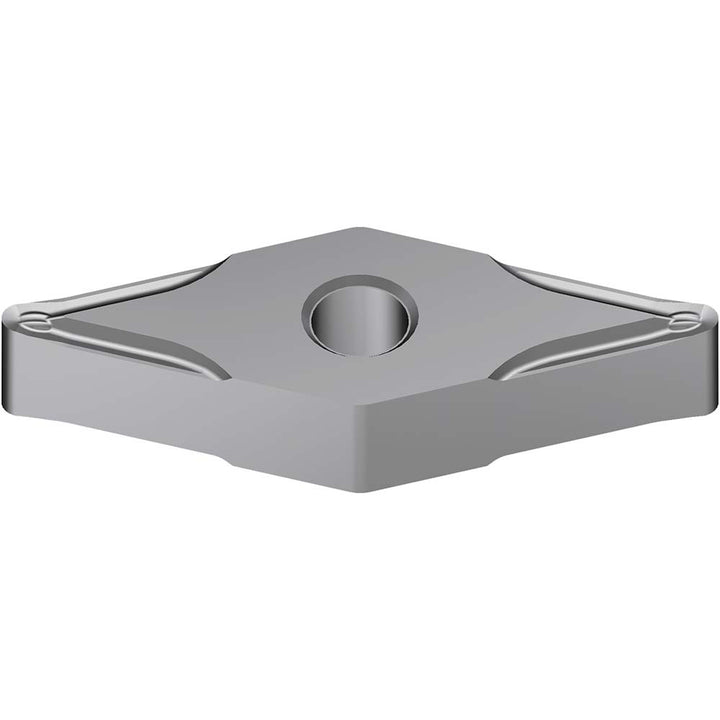

VNMG160404N-SU Carbide Insert, Grade AC8035P, Absotech Platinum - Sumitomo 19T3APR
MFR# 19T3APRISO/ANSI# VNMG160404N-SUCat# VNMG331ESUAC8035PSeries VN
$22.28List $28.07
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC8035P
MaterialCarbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T3APR is a VNMG160404N-SU carbide indexable insert, grade AC8035P, Absotech Platinum coated. Suited for steel.
Specifications
Ansi size code331
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/64
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-SU
Iso size code160404
Manufacturers catalog numberVNMG331ESUAC8035P
Manufacturer gradeAC8035P
Material gradeP30; P40
Multi use toolYes
Primary workpiece materialSteel
RakeNegative
Rake angle13
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
