Sumitomo

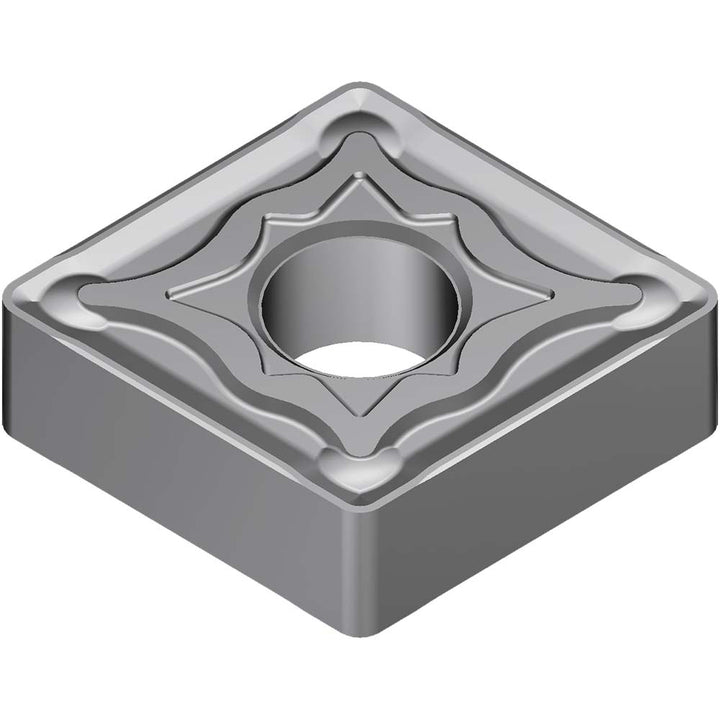

CNMG120408N-UX Solid Carbide Insert, Grade AC8035P, Absotech Platinum - Sumitomo 19T3AVH
MFR# 19T3AVHISO/ANSI# CNMG120408N-UXCat# CNMG432EUXAC8035PSeries CN
$12.93List $16.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC8035P
MaterialSolid Carbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T3AVH is a CNMG120408N-UX solid carbide indexable insert, grade AC8035P, Absotech Platinum coated. Suited for steel.
Specifications
Ansi codeCNMG432EUX
Chip breakerEUX
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-UX
Manufacturers catalog numberCNMG432EUXAC8035P
Manufacturer gradeAC8035P
Material gradeP30; P40
Multi use toolYes
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
