Sumitomo

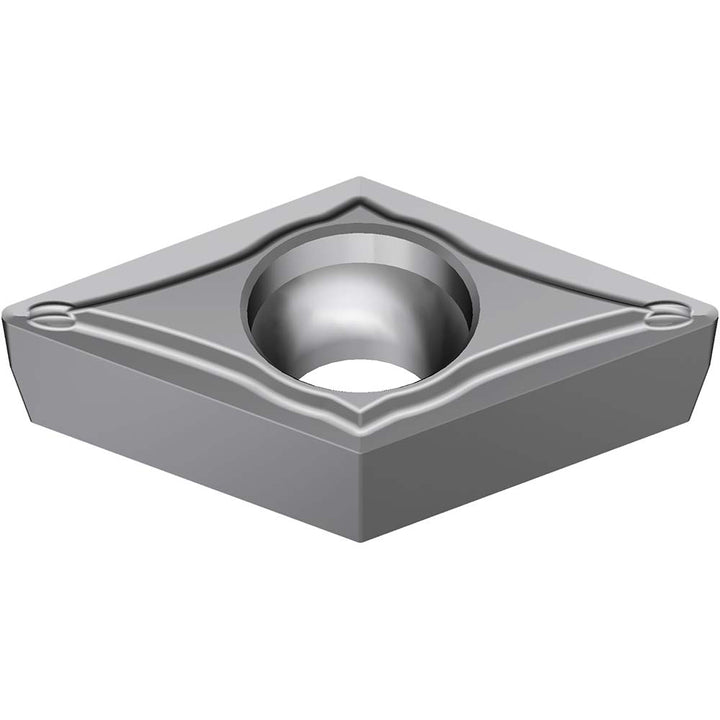

DCMT070208N-SU Carbide Insert, Grade AC8035P, Absotech Platinum - Sumitomo 19T3BPJ
MFR# 19T3BPJISO/ANSI# DCMT070208Cat# DCMT21.52ESU-AC8035PSeries DC
$15.12List $19.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC8035P
MaterialCarbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T3BPJ is a DCMT070208N-SU carbide indexable insert, grade AC8035P, Absotech Platinum coated. Suited for steel.
Specifications
Ansi insert codeDCMT21.52
Ansi size code21.52
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.3031
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21.52
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070208N-SU
Iso insert codeDCMT070208
Iso size code070208
Manufacturers catalog numberDCMT21.52ESU-AC8035P
Manufacturer gradeAC8035P
Material gradeP30; P40
Multi use toolYes
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
