Sumitomo

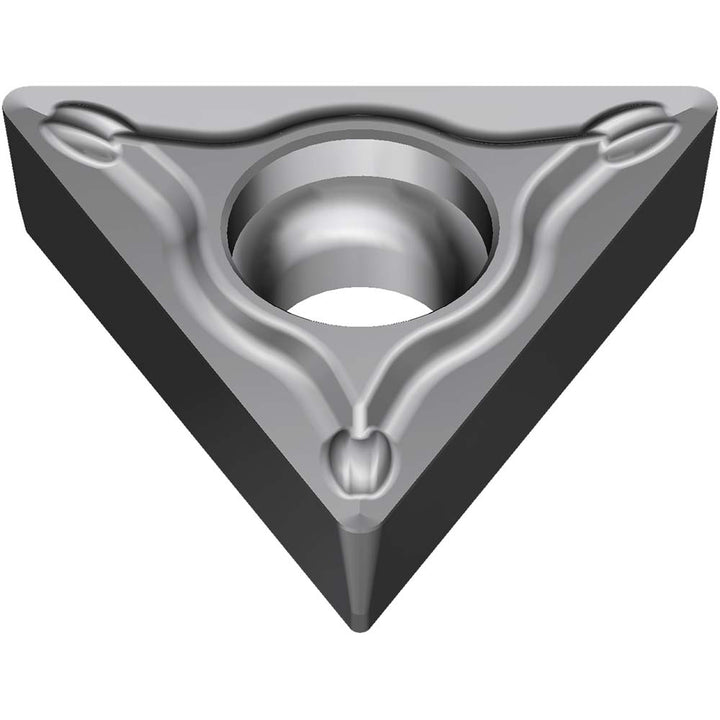

TCMT16T308N-SU Solid Carbide Insert, Grade AC8035P, Absotech Platinum - Sumitomo 19T3BPU
MFR# 19T3BPUISO/ANSI# TCMT16T308N-SUCat# TCMT32.52ESUAC8035PSeries TC
$16.73List $21.09
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC8035P
MaterialSolid Carbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T3BPU is a TCMT16T308N-SU solid carbide indexable insert, grade AC8035P, Absotech Platinum coated. Suited for steel.
Specifications
Ansi codeTCMT32.52ESU
Chip breakerESU
Clearance codeC
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Cutting directionNeutral
Full radiusNo
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T308N-SU
Manufacturers catalog numberTCMT32.52ESUAC8035P
Manufacturer gradeAC8035P
Material gradeP30; P40
Multi use toolYes
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
