Sumitomo

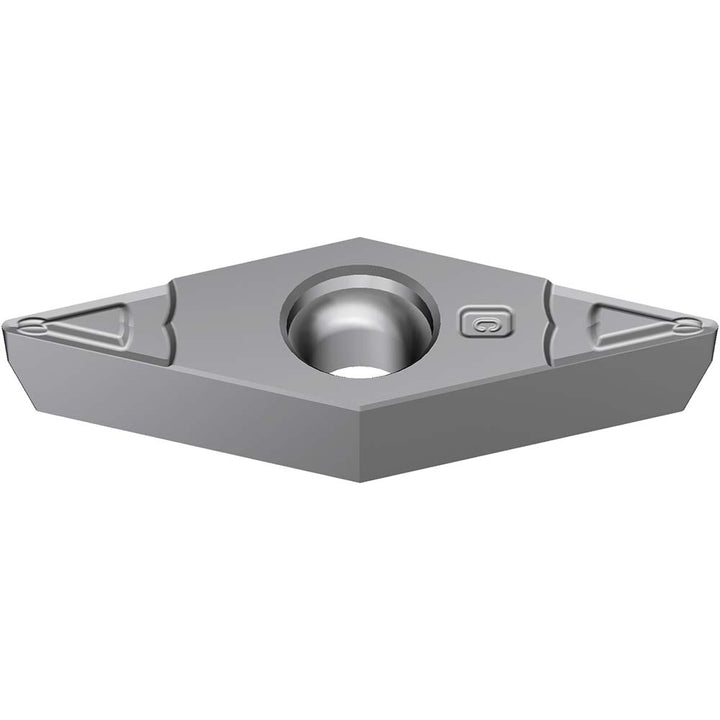

VBMT160408N-SU Carbide Insert, Grade AC8035P, Absotech Platinum - Sumitomo 19T3BPW
MFR# 19T3BPWISO/ANSI# VBMT160408N-SUCat# VBMT332ESU-AC8035PSeries VB
$22.84List $29.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC8035P
MaterialCarbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T3BPW is a VBMT160408N-SU carbide indexable insert, grade AC8035P, Absotech Platinum coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeB
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Full radiusNo
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160408N-SU
Manufacturers catalog numberVBMT332ESU-AC8035P
Manufacturer gradeAC8035P
Material gradeP30; P40
Multi use toolYes
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle5
StandardsANSI; ISO 13399
Tolerance codeM
