Sumitomo

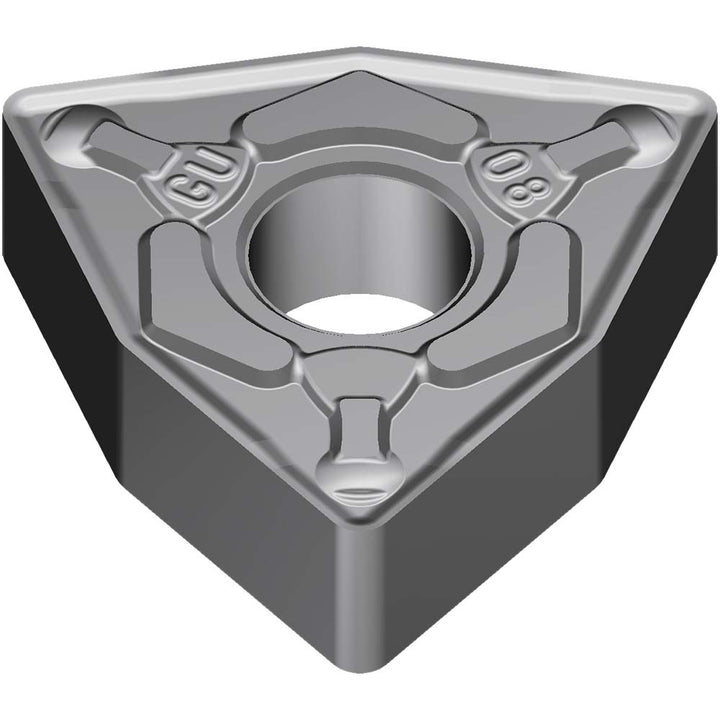

WNMG080408N-GU Solid Carbide Insert, Grade AC8015P, Absotech Platinum - Sumitomo 19T4337
MFR# 19T4337ISO/ANSI# WNMG080408N-GUCat# WNMG432EGU-AC8015PSeries TN
$14.87List $18.74
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC8015P
MaterialSolid Carbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T4337 is a WNMG080408N-GU solid carbide indexable insert, grade AC8015P, Absotech Platinum coated. Suited for steel.
Specifications
Ansi codeWNMG432EGU
Chip breakerEGU
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-GU
Manufacturers catalog numberWNMG432EGU-AC8015P
Manufacturer gradeAC8015P
Material gradeP10; P20
Multi use toolYes
Primary workpiece materialSteel
RakeNegative
Rake angle7
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
