Sumitomo

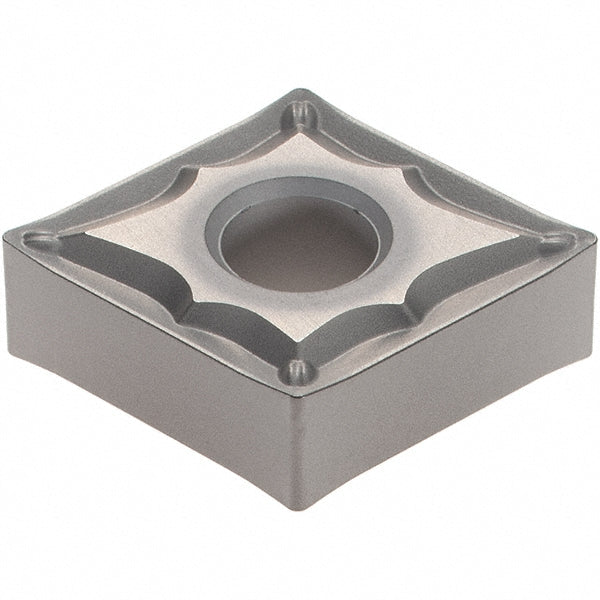

CNMG120404N-SU Solid Carbide Insert, Grade AC8015P, Absotech Platinum - Sumitomo 19T4ANZ
MFR# 19T4ANZISO/ANSI# CNMG120404N-SUCat# CNMG431ESU-AC8015PSeries CN
$12.93List $16.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC8015P
MaterialSolid Carbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T4ANZ is a CNMG120404N-SU solid carbide indexable insert, grade AC8015P, Absotech Platinum coated. Suited for steel.
Specifications
Ansi codeCNMG431ESU
Chip breakerESU
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/64
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-SU
Manufacturers catalog numberCNMG431ESU-AC8015P
Manufacturer gradeAC8015P
Material gradeP10; P20
Multi use toolYes
Primary workpiece materialSteel
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
