Sumitomo
DNMG150404N-SU Carbide Insert, Grade AC8015P, Absotech Platinum - Sumitomo 19T4APK
MFR# 19T4APKISO/ANSI# DNMG150404N-SUCat# DNMG431ESU-AC8015PSeries DN
$18.75List $24.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC8015P
MaterialCarbide
CoatingAbsotech Platinum
Description

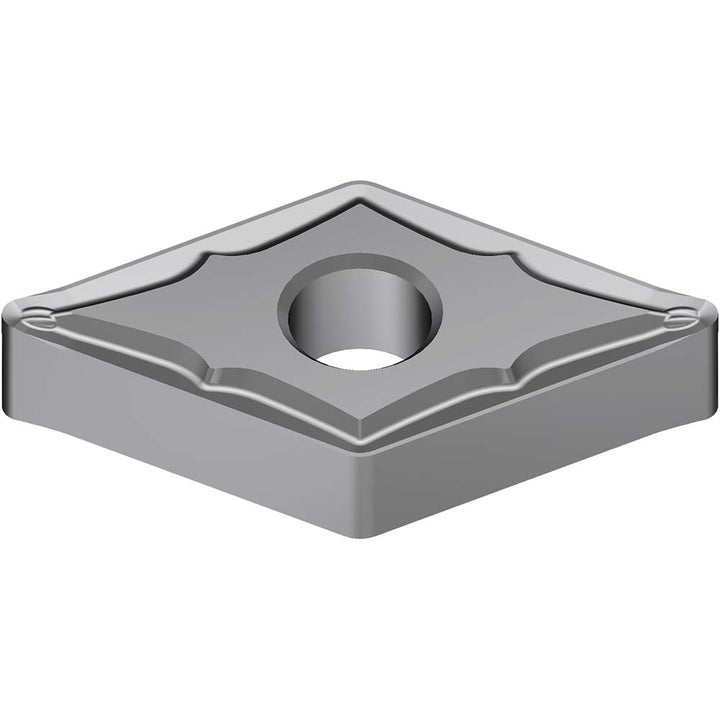

The Sumitomo 19T4APK is a DNMG150404N-SU carbide indexable insert, grade AC8015P, Absotech Platinum coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/64
Full radiusNo
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-SU
Manufacturers catalog numberDNMG431ESU-AC8015P
Manufacturer gradeAC8015P
Material gradeP10; P20
Multi use toolYes
Primary workpiece materialSteel
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
