Sumitomo

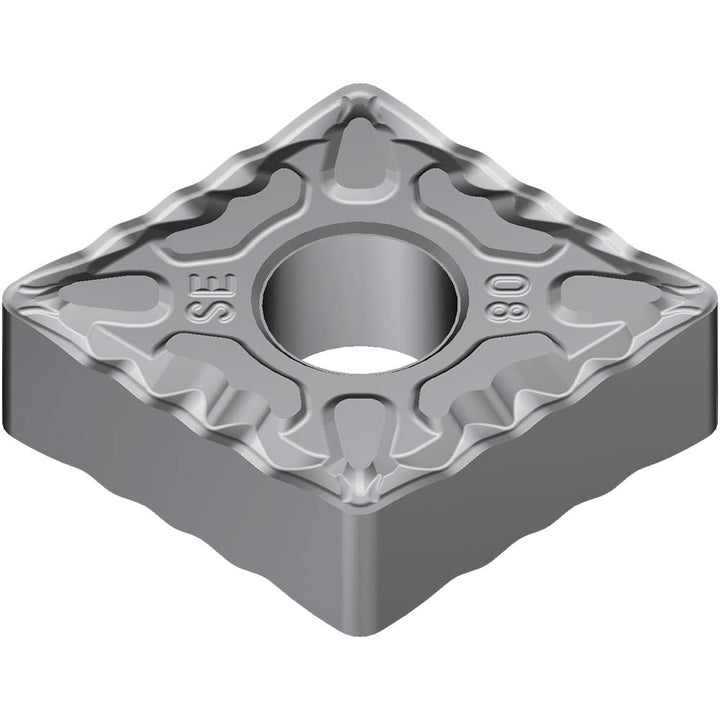

CNMG120404N-SE Carbide Insert, Grade AC8015P, Absotech Platinum - Sumitomo 19T4AWB
MFR# 19T4AWBISO/ANSI# CNMG120404Cat# CNMG431ESE-AC8015PSeries CN
$12.93List $16.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC8015P
MaterialCarbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T4AWB is a CNMG120404N-SE carbide indexable insert, grade AC8015P, Absotech Platinum coated. Suited for steel.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerESE
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/64
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-SE
Iso insert codeCNMG120404
Iso size code120404
Manufacturers catalog numberCNMG431ESE-AC8015P
Manufacturer gradeAC8015P
Material gradeP10; P20
Multi use toolYes
Primary workpiece materialSteel
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
