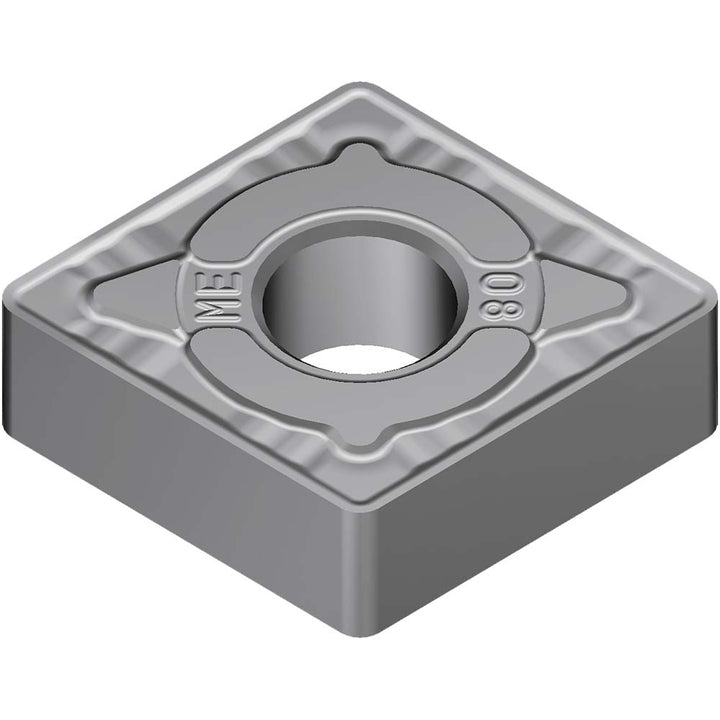

CNMG160616N-ME Carbide Insert, Grade AC8015P, Absotech Platinum - Sumitomo 19T4CDV

Sumitomo

CNMG160616N-ME Carbide Insert, Grade AC8015P, Absotech Platinum - Sumitomo 19T4CDV

MFR# 19T4CDVISO/ANSI# CNMG160616Cat# CNMG544EME-AC8015PSeries CN

$19.94List $25.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC8015P
MaterialCarbide
CoatingAbsotech Platinum

Description

The Sumitomo 19T4CDV is a CNMG160616N-ME carbide indexable insert, grade AC8015P, Absotech Platinum coated. Suited for steel.

Specifications

Ansi insert codeCNMG544
Ansi size code544
Chip breakerEME
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/16
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6339
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code544
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160616N-ME
Iso insert codeCNMG160616
Iso size code160616
Manufacturers catalog numberCNMG544EME-AC8015P
Manufacturer gradeAC8015P
Material gradeP10; P20
Multi use toolYes
Primary workpiece materialSteel
RakeNegative
Rake angle4
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
