Sumitomo

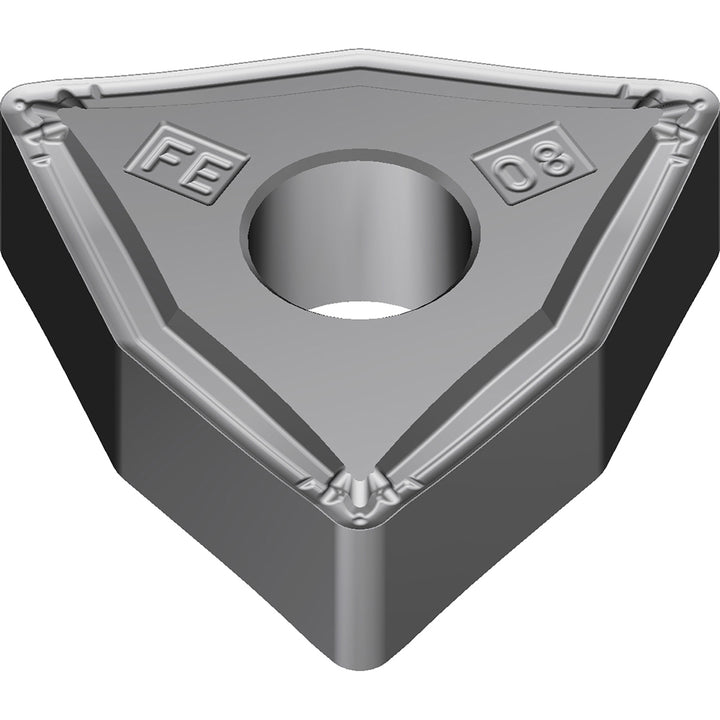

WNMG080404N-FE Carbide Insert, Grade AC8015P, Absotech - Sumitomo 19T4CUH
MFR# 19T4CUHISO/ANSI# WNMG080404N-FECat# WNMG431EFE-AC8015PSeries AC8000P
$12.93List $16.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC8015P
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 19T4CUH is a WNMG080404N-FE carbide indexable insert, grade AC8015P, Absotech coated. Suited for steel.
Specifications
Chip breakerEFE
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0157
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert size code431
Insert styleWNMG
Insert thickness0.1874
Iso codeWNMG080404N-FE
Length range0.3000 - 0.4000
Manufacturers catalog numberWNMG431EFE-AC8015P
Manufacturer gradeAC8015P
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
