Sumitomo

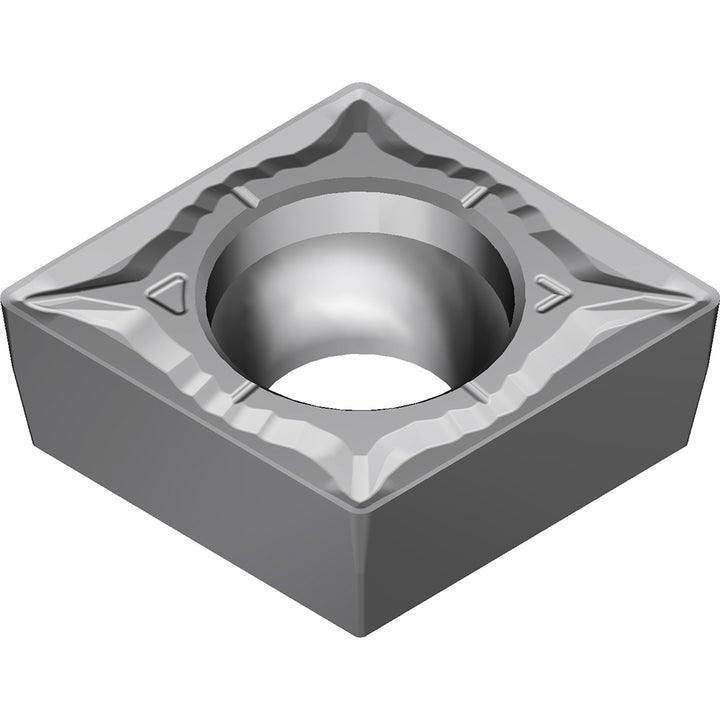

CCMT09T304N-GU Carbide Insert, Grade AC8015P, Absotech - Sumitomo 19T4DCM
MFR# 19T4DCMISO/ANSI# CCMT09T304Cat# CCMT32.51EGU-AC8015PSeries AC8000P
$10.97List $14.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC8015P
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 19T4DCM is a CCMT09T304N-GU carbide indexable insert, grade AC8015P, Absotech coated. Suited for steel.
Specifications
Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerEGU
Chip breaker operationLight Machining; Medium Machining
Clearance codeC
Coating finishAbsotech
Coating processCVD
Corner radius0.0157
Grade characteristicsSteel (P) - High Wear-Resistance
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew-On
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness0.1563
Iso codeCCMT09T304N-GU
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog numberCCMT32.51EGU-AC8015P
Manufacturer gradeAC8015P
Primary workpiece materialSteel
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeM
