Sumitomo

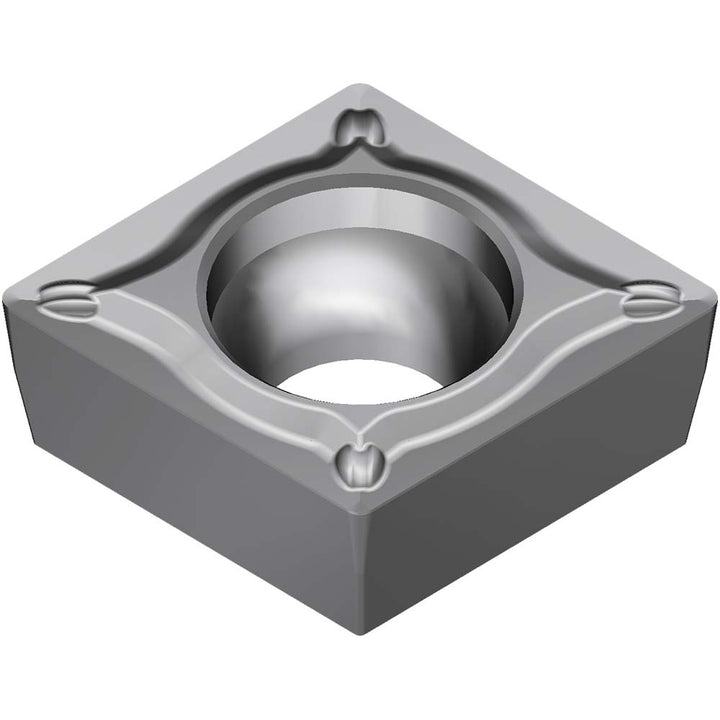

CPMT060208N-SU Carbide Insert, Grade AC8015P, Absotech Platinum - Sumitomo 19T4W3E
MFR# 19T4W3EISO/ANSI# CPMT060208N-SUCat# CPMT21.52ESU-AC8015PSeries CPMT
$9.51List $12.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC8015P
MaterialCarbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T4W3E is a CPMT060208N-SU carbide indexable insert, grade AC8015P, Absotech Platinum coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeP
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Full radiusNo
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.2520
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT060208N-SU
Manufacturers catalog numberCPMT21.52ESU-AC8015P
Manufacturer gradeAC8015P
Material gradeP10; P20
Multi use toolYes
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
