Sumitomo

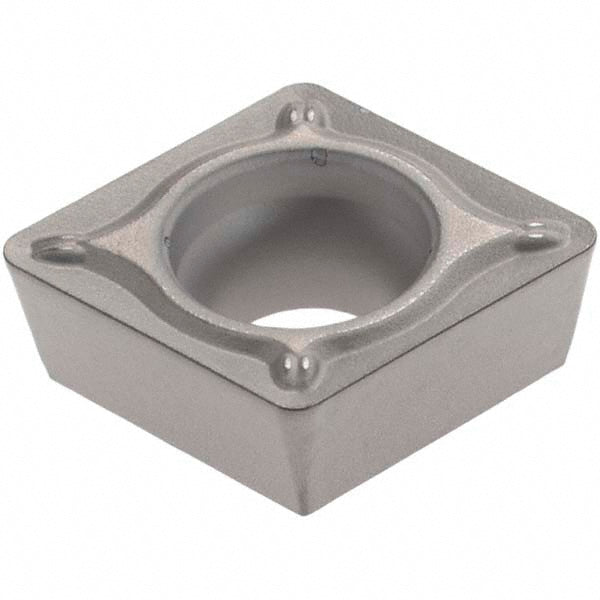

CPMT09T308N-SU Carbide Insert, Grade AC8015P, Absotech Platinum - Sumitomo 19T4W40
MFR# 19T4W40ISO/ANSI# CPMT09T308N-SUCat# CPMT32.52ESU-AC8015PSeries CPMT
$11.74List $15.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC8015P
MaterialCarbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T4W40 is a CPMT09T308N-SU carbide indexable insert, grade AC8015P, Absotech Platinum coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeP
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Full radiusNo
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond
Insert size code32.5
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T308N-SU
Manufacturers catalog numberCPMT32.52ESU-AC8015P
Manufacturer gradeAC8015P
Material gradeP10; P20
Multi use toolYes
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
