Sumitomo

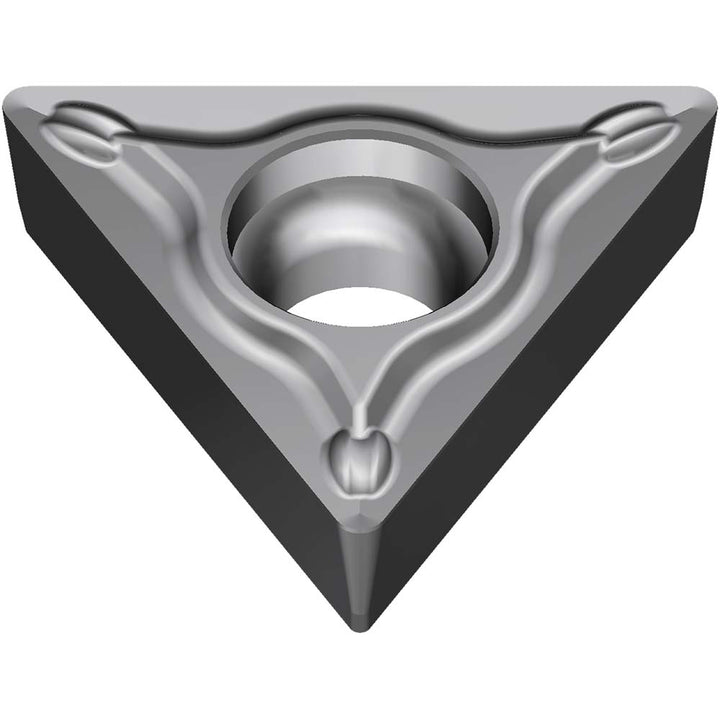

TPMT110204N-SU Solid Carbide Insert, Grade AC8015P, Absotech Platinum - Sumitomo 19T4WBS
MFR# 19T4WBSISO/ANSI# TPMT110204N-SUCat# TPMT21.51ESU-AC8015PSeries TPMT
$10.63List $13.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC8015P
MaterialSolid Carbide
CoatingAbsotech Platinum
Description
The Sumitomo 19T4WBS is a TPMT110204N-SU solid carbide indexable insert, grade AC8015P, Absotech Platinum coated. Suited for steel.
Specifications
Ansi codeTPMT21.51ESU
Chip breakerESU
Clearance codeP
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/64
Cutting directionNeutral
Full radiusNo
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code21.5
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT110204N-SU
Manufacturers catalog numberTPMT21.51ESU-AC8015P
Manufacturer gradeAC8015P
Material gradeP10; P20
Multi use toolYes
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
