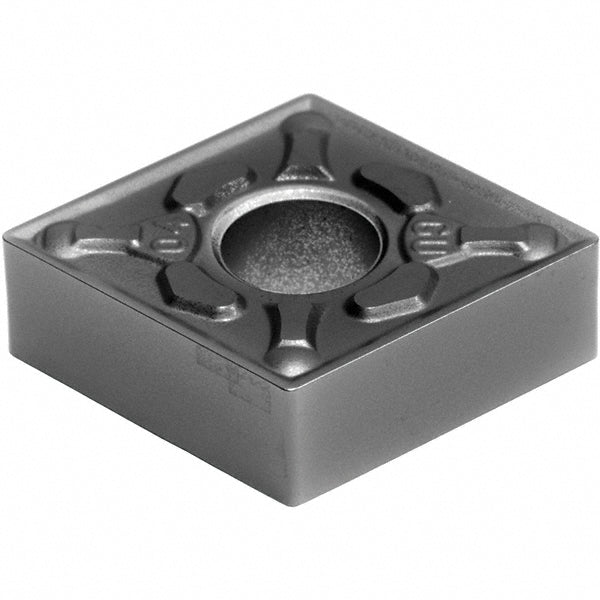

CNMG120412N-GU Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5336

Sumitomo

CNMG120412N-GU Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5336

MFR# 19T5336ISO/ANSI# CNMG120412Cat# CNMG433EGUAC5015SSeries AC5000S

$11.96List $15.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN

Description

The Sumitomo 19T5336 is a CNMG120412N-GU carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for non-ferrous metal, superalloy.

Specifications

Ansi insert codeCNMG433
Ansi size code433
Chip breakerEGU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0469
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412N-GU
Iso insert codeCNMG120412
Iso size code120412
Manufacturers catalog numberCNMG433EGUAC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakeNegative
Rake angle7
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
