Sumitomo

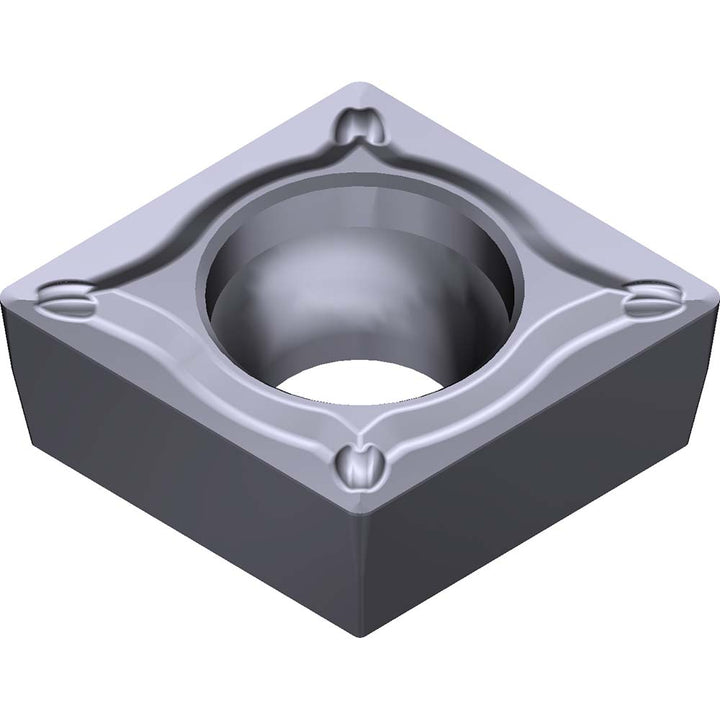

CCMT120404N-SU Carbide Insert, Grade AC5015S, Absotech Bronze - Sumitomo 19T5632
MFR# 19T5632ISO/ANSI# CCMT120404N-SUCat# CCMT431ESU-AC5015SSeries AC5000S
$12.70List $16.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5015S
MaterialCarbide
CoatingAbsotech Bronze
Description
The Sumitomo 19T5632 is a CCMT120404N-SU carbide indexable insert, grade AC5015S, Absotech Bronze coated. Suited for non-ferrous metal, superalloy.
Specifications
Chip breakerESU
Clearance codeC
Coating finishAbsotech Bronze
Coating processPVD
Corner radius0.0157
Hole diameter5.5000
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120404N-SU
Length range0.5000 - 0.6000
Manufacturers catalog numberCCMT431ESU-AC5015S
Manufacturer gradeAC5015S
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
