Sumitomo

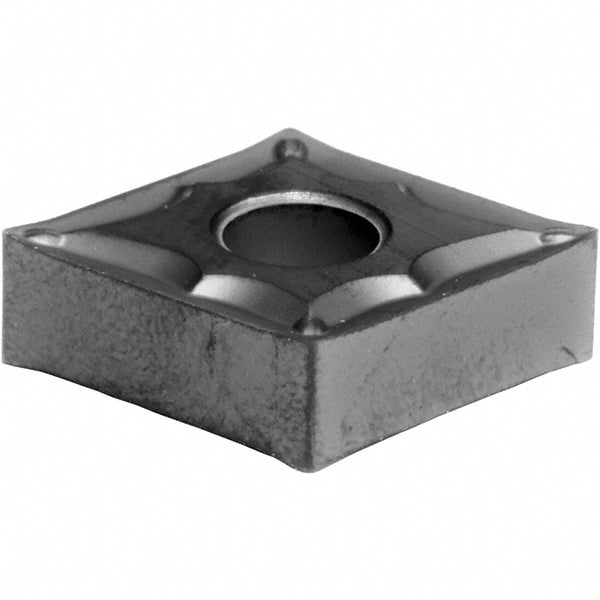

CNMG120404N-SU Solid Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5ANZ
MFR# 19T5ANZISO/ANSI# CNMG120404N-SUCat# CNMG431ESUAC5015SSeries AC5000S
$11.96List $15.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5015S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T5ANZ is a CNMG120404N-SU solid carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for non-ferrous metal, superalloy.
Specifications
Ansi codeCNMG431ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Cutting directionNeutral
Full radiusNo
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-SU
Manufacturers catalog numberCNMG431ESUAC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
