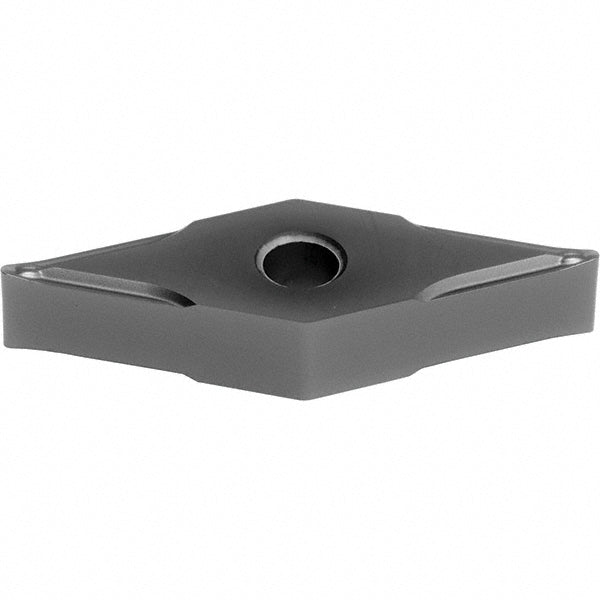

VNMG160408N-SU Solid Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5APS
MFR# 19T5APSISO/ANSI# VNMG160408N-SUCat# VNMG332ESU-AC5015SSeries AC5000S
$17.46List $22.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5015S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T5APS is a VNMG160408N-SU solid carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for non-ferrous metal, superalloy.
Specifications
Ansi codeVNMG332ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Cutting directionNeutral
Full radiusNo
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-SU
Manufacturers catalog numberVNMG332ESU-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
