Sumitomo

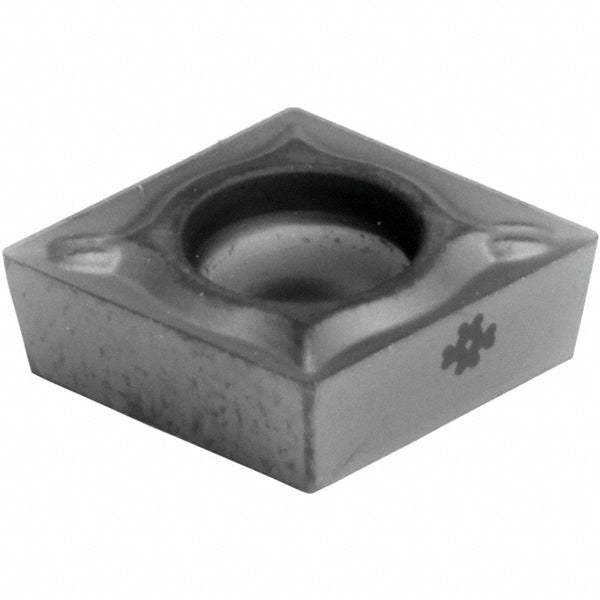

CCMT060204N-SU Solid Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5BPC
MFR# 19T5BPCISO/ANSI# CCMT060204N-SUCat# CCMT21.51ESUAC5015SSeries AC5000S
$9.97List $12.57
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC5015S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T5BPC is a CCMT060204N-SU solid carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for non-ferrous metal, superalloy.
Specifications
Ansi codeCCMT21.51ESU
Chip breakerESU
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Cutting directionNeutral
Full radiusNo
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in1/4
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204N-SU
Manufacturers catalog numberCCMT21.51ESUAC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakePositive
Rake angle8
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
