Sumitomo

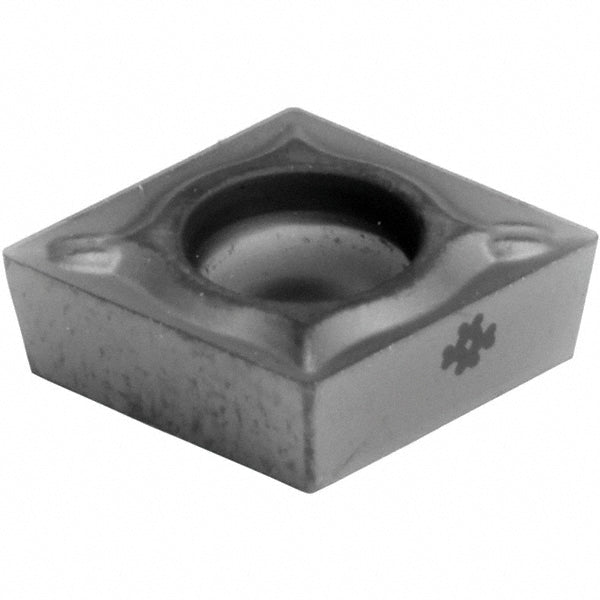

CCMT09T308N-SU Solid Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5BPF
MFR# 19T5BPFISO/ANSI# CCMT09T308N-SUCat# CCMT32.52ESUAC5015SSeries AC5000S
$10.29List $13.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5015S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T5BPF is a CCMT09T308N-SU solid carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for non-ferrous metal, superalloy.
Specifications
Ansi codeCCMT32.52ESU
Chip breakerESU
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Cutting directionNeutral
Full radiusNo
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.5
Insert styleCCMT
Iso codeCCMT09T308N-SU
Manufacturers catalog numberCCMT32.52ESUAC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakePositive
Rake angle8
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
