Sumitomo

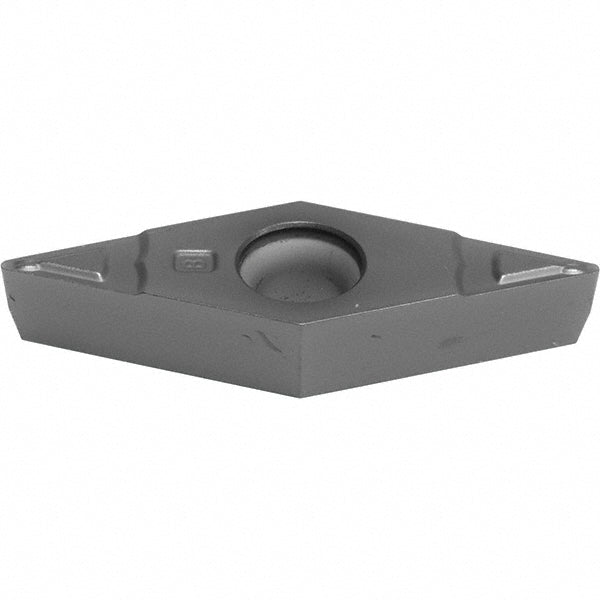

VBMT160404N-SU Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5BPV
MFR# 19T5BPVISO/ANSI# VBMT160404N-SUCat# VBMT331ESU-AC5015SSeries AC5000S
$22.10List $28.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T5BPV is a VBMT160404N-SU carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Chip breakerESU
Clearance codeB
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Full radiusNo
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404N-SU
Manufacturers catalog numberVBMT331ESU-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakePositive
Rake angle8
Relief angle5
StandardsANSI; ISO 13399
Tolerance codeM
