Sumitomo

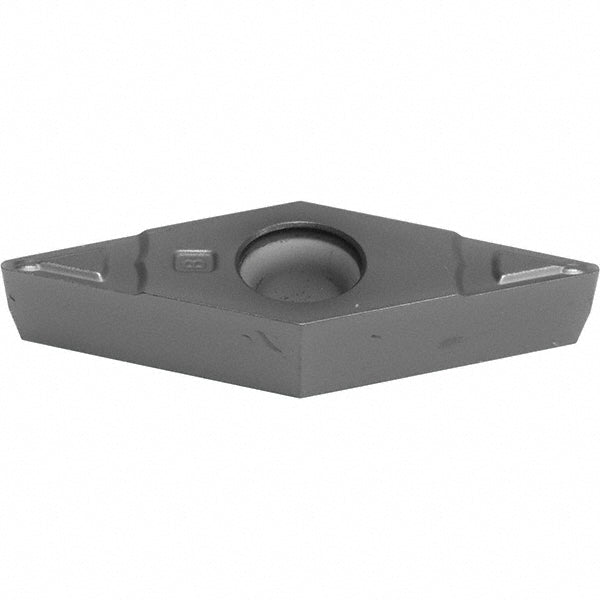

VBMT110308N-SU Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5BWD
MFR# 19T5BWDISO/ANSI# VBMT110308Cat# VBMT222ESU-AC5015SSeries AC5000S
$13.49List $17.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T5BWD is a VBMT110308N-SU carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Ansi insert codeVBMT222
Ansi size code222
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1340
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4370
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code222
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT110308N-SU
Iso insert codeVBMT110308
Iso size code110308
Manufacturers catalog numberVBMT222ESU-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakePositive
Rake angle8
Relief angle5
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
