Sumitomo

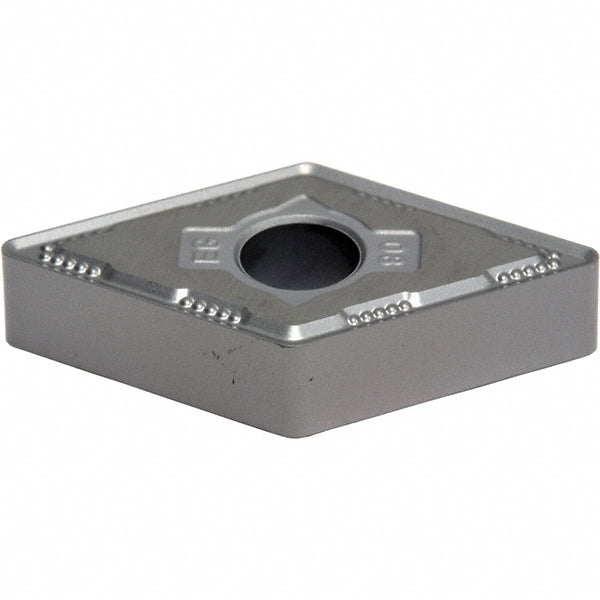

DNMG150412N-EG Solid Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5CGC
MFR# 19T5CGCISO/ANSI# DNMG150412N-EGCat# DNMG433EEG-AC5015SSeries AC5000S
$16.84List $21.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5015S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T5CGC is a DNMG150412N-EG solid carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Ansi codeDNMG433EEG
Chip breakerEEG
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0469
Cutting directionNeutral
Full radiusNo
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412N-EG
Manufacturers catalog numberDNMG433EEG-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
