Sumitomo

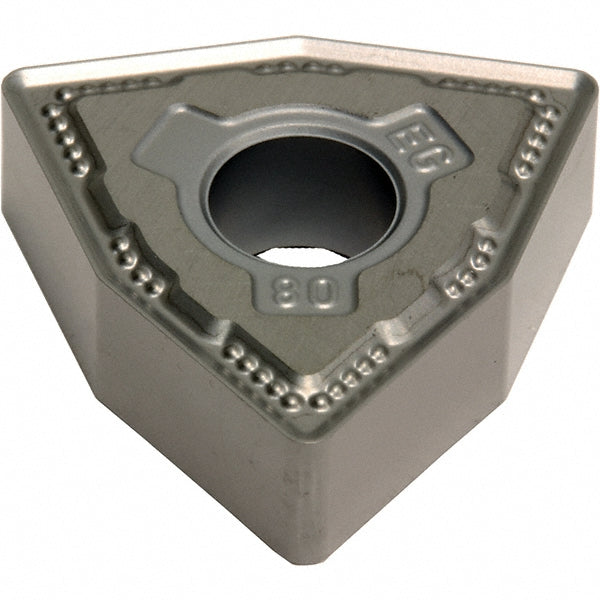

WNMG080408N-EG Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5CGK
MFR# 19T5CGKISO/ANSI# WNMG080408N-EGCat# WNMG432EEG-AC5015SSeries AC5000S
$13.75List $17.33
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T5CGK is a WNMG080408N-EG carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Chip breakerEEG
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Full radiusNo
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-EG
Manufacturers catalog numberWNMG432EEG-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
