Sumitomo

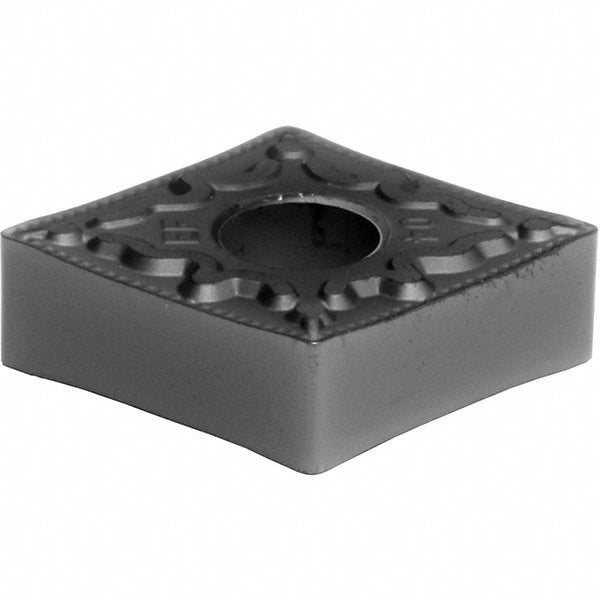

CNMG120408N-EF Solid Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5CGP
MFR# 19T5CGPISO/ANSI# CNMG120408N-EFCat# CNMG432EEFAC5015SSeries AC5000S
$11.96List $15.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5015S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T5CGP is a CNMG120408N-EF solid carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for non-ferrous metal, superalloy.
Specifications
Ansi codeCNMG432EEF
Chip breakerEEF
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Cutting directionNeutral
Full radiusNo
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-EF
Manufacturers catalog numberCNMG432EEFAC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakeNegative
Rake angle20
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
