Sumitomo

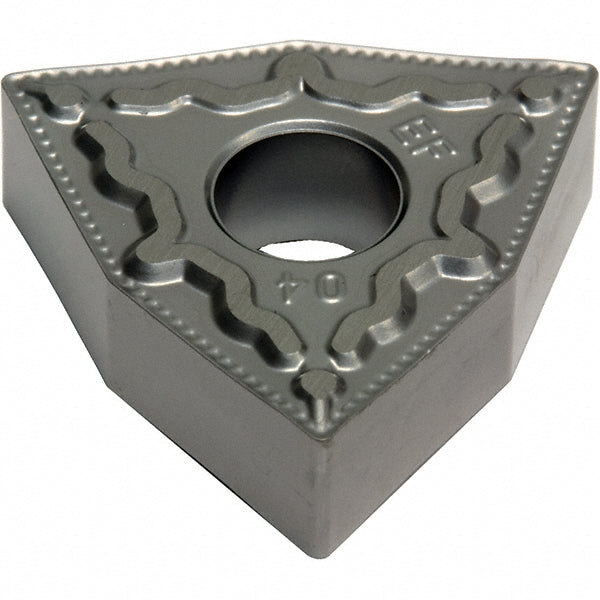

WNMG080404N-EF Solid Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5CGY
MFR# 19T5CGYISO/ANSI# WNMG080404N-EFCat# WNMG431EEF-AC5015SSeries AC5000S
$14.00List $17.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC5015S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T5CGY is a WNMG080404N-EF solid carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Ansi codeWNMG431EEF
Chip breakerEEF
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Cutting directionNeutral
Full radiusNo
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404N-EF
Manufacturers catalog numberWNMG431EEF-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakeNegative
Rake angle20
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
