Sumitomo

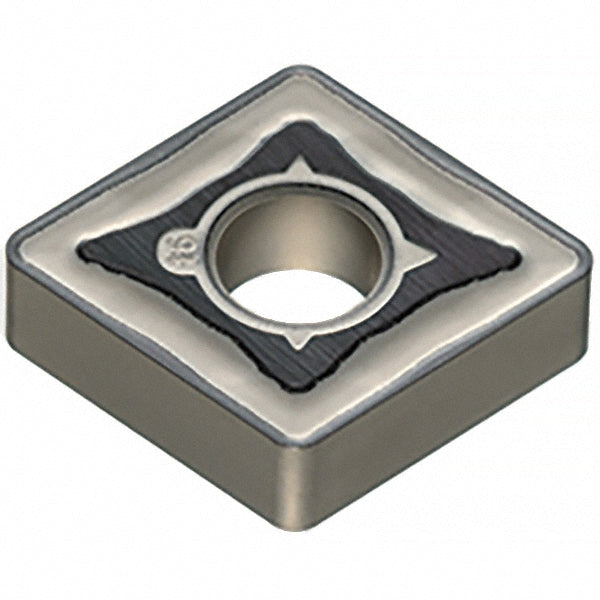

CNMG190612N-EM Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5CNG
MFR# 19T5CNGISO/ANSI# CNMG190612N-EMCat# CNMG643EEMAC5015SSeries AC5000S
$26.30List $33.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T5CNG is a CNMG190612N-EM carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for non-ferrous metal, superalloy.
Specifications
Chip breakerEEM
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0469
Full radiusNo
Hole diameter0.3126
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodScrew
Insert length0.7598
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612N-EM
Manufacturers catalog numberCNMG643EEMAC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
