Sumitomo

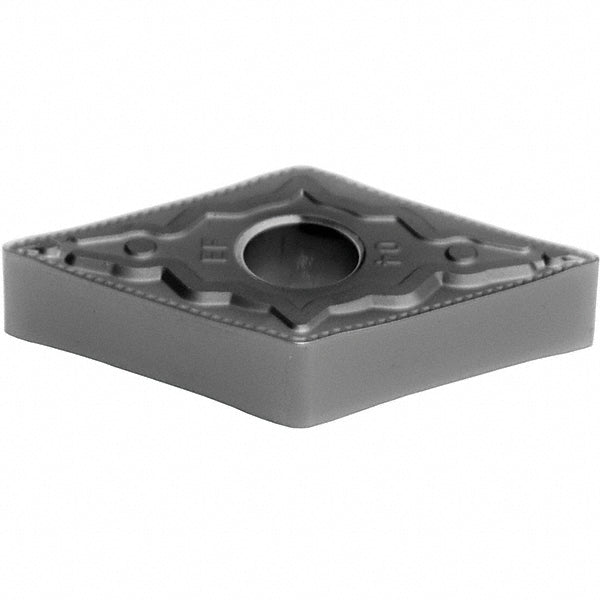

DNMG110408N-EF Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5CQG
MFR# 19T5CQGISO/ANSI# DNMG110408N-EFCat# DNMG332EEF-AC5015SSeries AC5000S
$14.29List $18.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T5CQG is a DNMG110408N-EF carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Chip breakerEEF
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Full radiusNo
Hole diameter0.1500
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110408N-EF
Manufacturers catalog numberDNMG332EEF-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakeNegative
Rake angle20
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
